FoxAlien
[Discontinued] CNC Router Machine Masuter
SKU: CNC-4040-Basic |

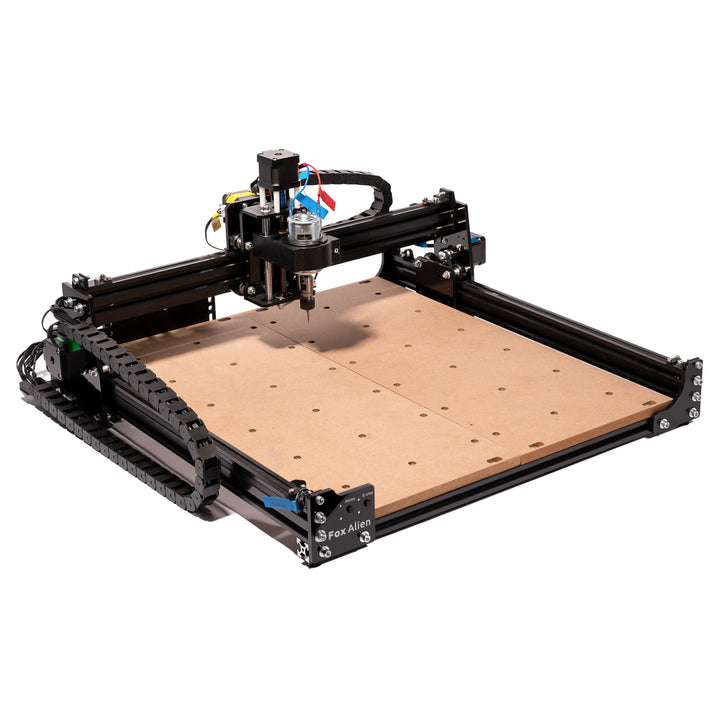

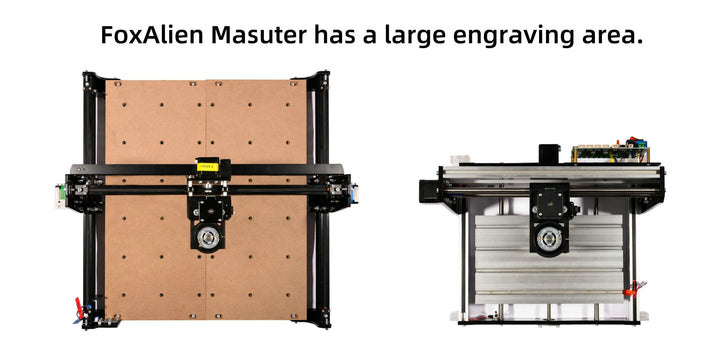

- Masuter 4040 is a cost-effective CNC router with large working area of 400 x 380 x 55mm (15.75” x 14.96” x 2.16”). It uses a 60W spindle and NEMA17 stepper motors. Max moving speed is 2000mm/min and spindle speed range is 0~10000.

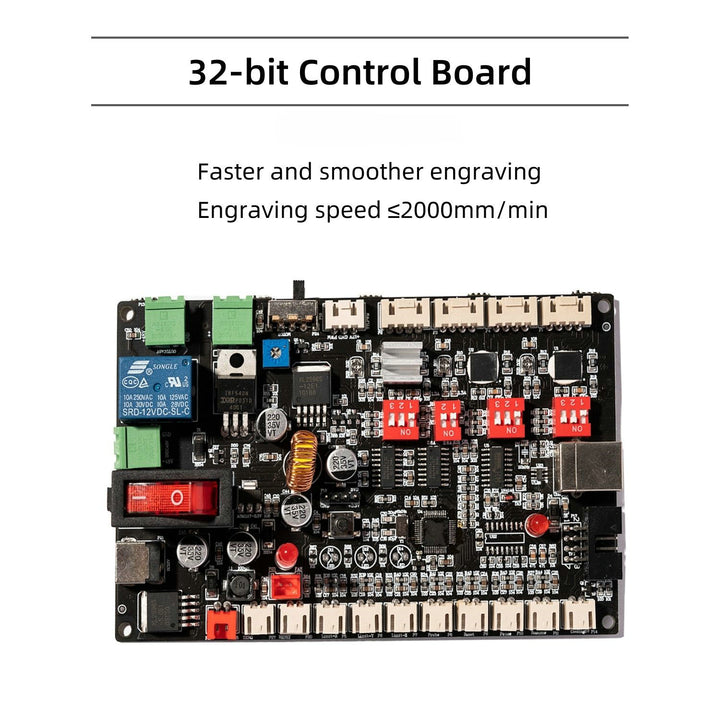

- The control board is equipped with an upgraded 32-bit chip which works more efficient and stable. It also supports add-ons such as offline controller, 300W spindle and laser modules. (Add-ons sold separately)

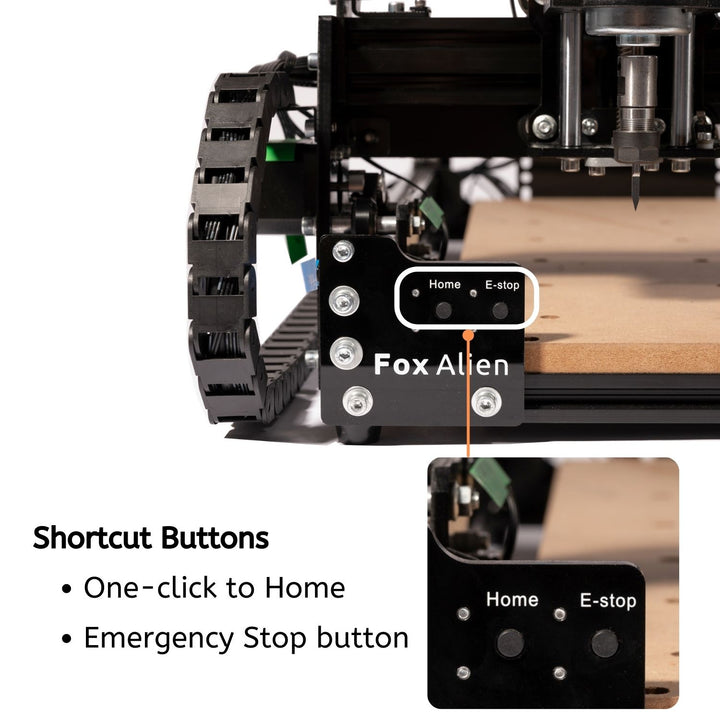

- HOME function and Emergency-Stop button are integrated on the machine. The machine will go to home with simply press the button.

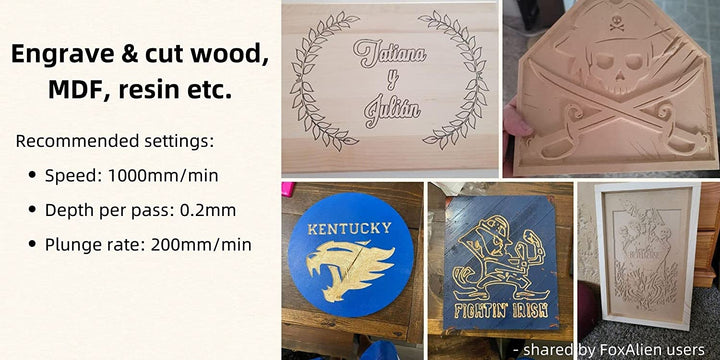

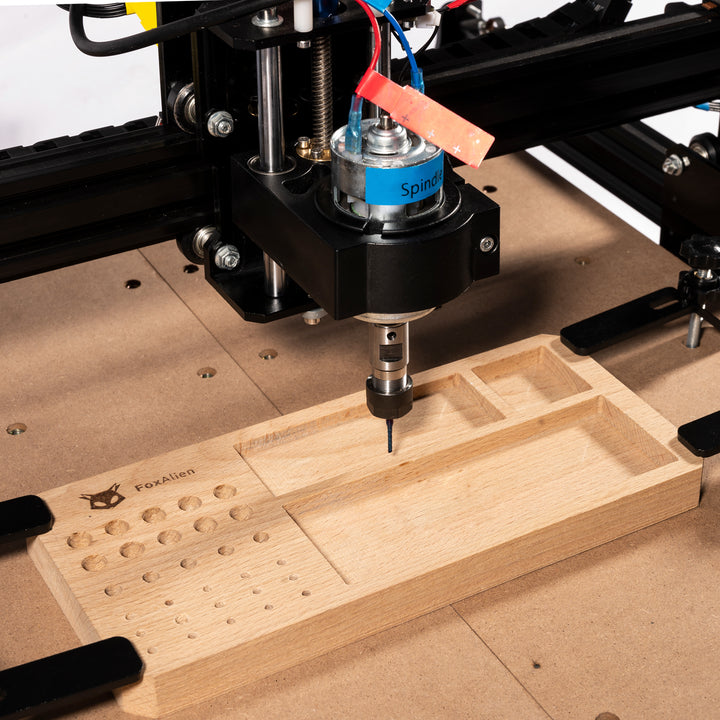

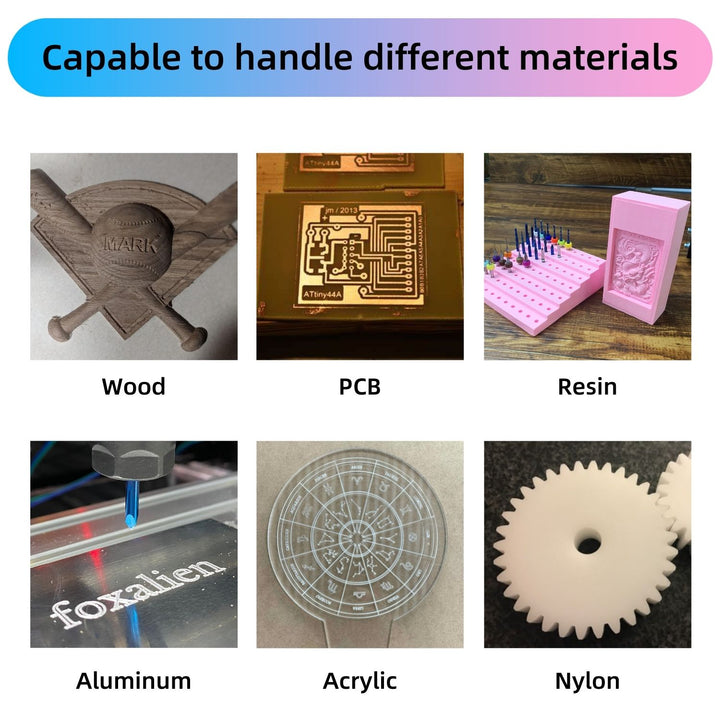

- Masuter 4040 is capable to engrave, cut and drill many kinds of material such as wood, MDF, acrylic, foam, resin, nylon, PCB, and aluminum etc.

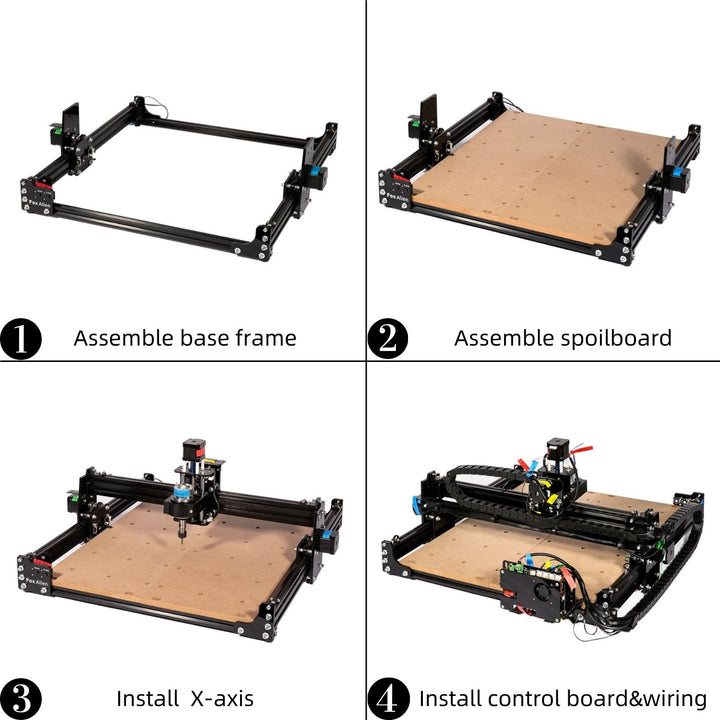

- Main parts are pre-assembled. It takes about 20-30mins to fully assembly. The machine is compatible with Grbl software. It supports Windows XP/7/10, Linux and Mac OS.
Tips: Click to Join FoxAlien CNC Router User Facebook Group.
Specification

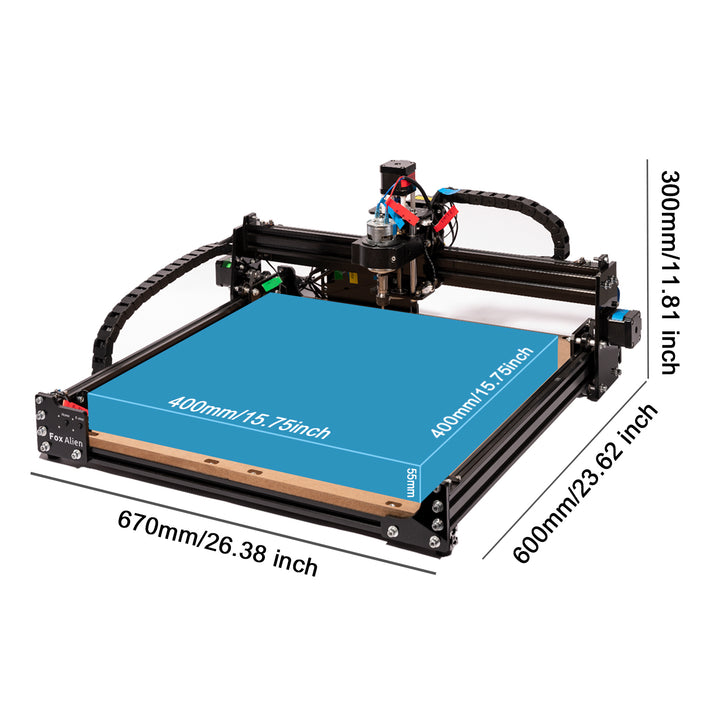

- Active Working Area: 15.75” x 14.96” x 2.16” (400 x 380 x 55mm)
- Spindle: 775; 10000RPM
- Input Supply: 12V/5A
- Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
- Supported OS: Windows XP/7/8/10, MAC OS, Linux

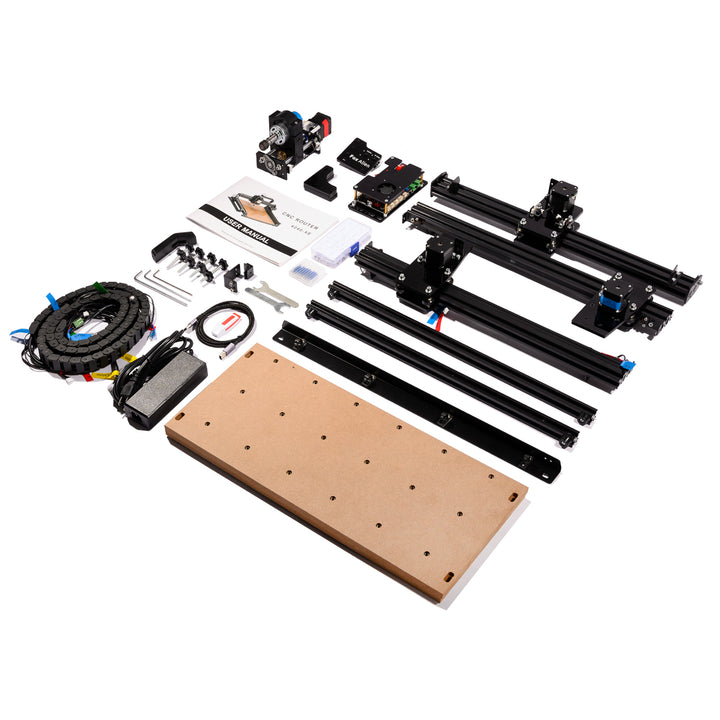

Package List
- 1x CNC Router Machine (Main part pre-installed)
- 1x Z Probe
- 1x Cooling Fan
- 4x Clamp
- 1x Power Supply
- 1x USB Cable
- 1x U Disk
- 1x User Manual
- 10 x Router Bits
- Packs of screws
Customer Reviews
CNC Router Machine Masuter
I fat thumbed a bad address for the shipping of this machine.
Customer service helped me solve this problem quickly.
Missing screws
Overall it was easy to set up makes good cuts. The bits don’t reach the bed on the z axis without adding a waste board to lift the pieces up. I’m satisfied
Bought a CNC it was delivered very quickly and the packaging was first class everything was labelled and the instructions were very easily to follow. I set it up and did my first test cut all worked great. I haven’t completed anything major on it as I’m still learning but the few little jobs I have attempted have been enjoyable.
The fan in the control panel seemed very noisy I contacted the support team and a new part was dispatched straight away. A small point I have is the waste board it is a two piece board and the centre line where both boards meet is slightly uneven, I have made an additional spoil board and surfaced it but unfortunately the two piece waste board flexes in the centre and it makes it difficult to get a completely level base, I am considering purchasing a slightly thicker piece of MDF and making a 1 piece board. I am also considering upgrading the spindle to the 300W, all in all I am happy at with the machine and it was at a great price point,
Machine is great so far. Dealing with software to make the machine really useful is complicated and frustrating.
Great beginner machine, well worth it to upgrade to a 300w spindle. Machine, while small is very capable and fox aliens customer service is top notch! (Granted there may be a delay depending what time zone you are in) overall fabulous machine!
I love FoxAlien products, this machine is a great addition, I would highly recommend upgrading the spindle to the 300w If budget allows.
If not, FoxAlien products are all upgradable so you can upgrade when ready.
The aftersales team are also so good. They always get back to you and help in any way they can.
The machine is super user friendly and the offline controller is super handy! Great little starter!
Thanks team
It's pretty good for what it is but definitely upgrade to the 300w spindle. Don't expect 20-30 minute cuts. 8x10 pine board with a Chicago bears head took about two hours using a two step carve. Machine does have problems with cutting curves as it can skip if going to fast. I'm happy with it but wish I would have saved for a more powerful machine.
This is my first CNC and it is a great middle ground option for a beginner; not cheap like some of inexpensive ones on amazon, but also doesn't break the bank. I have been using for about 6 months now with only one small loosening issue which customer service promptly provided an easy solution for. Great pick if you are getting started!
