CNC Router Bits 3D Carving Essential Kit | 1/4" Shank
SKU: CRB-14ER-Relief-Kit |
€125,20
Free Shipping in U.S.
Fast Delivery
International Shipping Available
Lifetime Customer Support

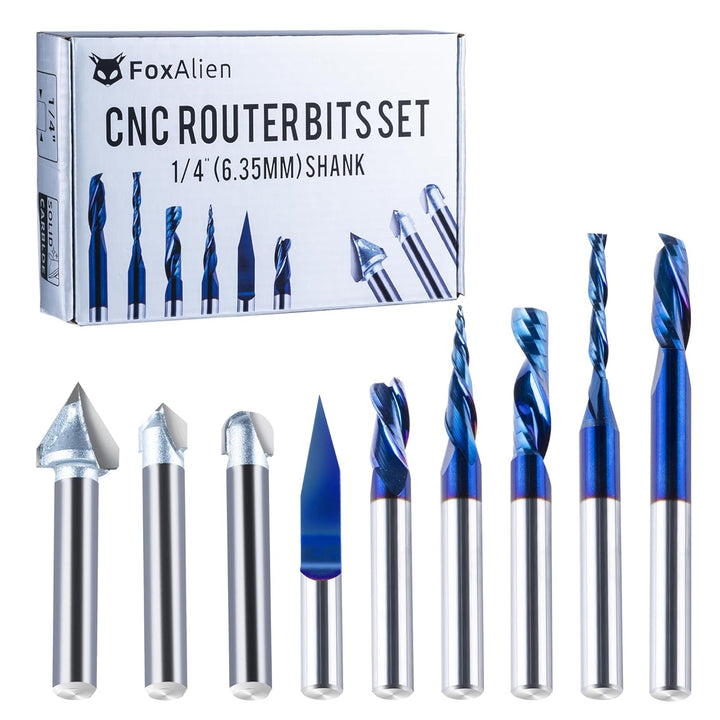

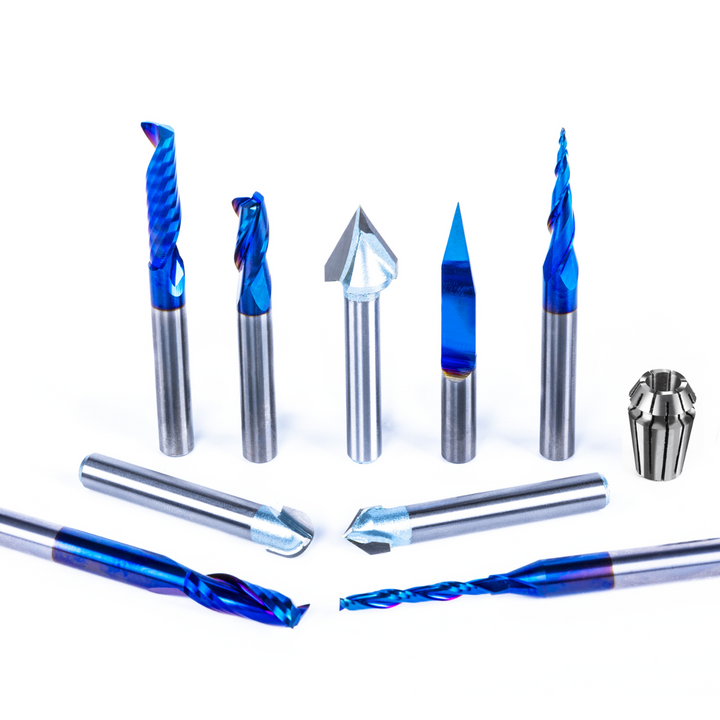

- This 1/4" shank router bits set is designed for multiple engraving purposes, especially for relief carving. It includes a 1/4" ER11 collet, 20deg V-bit, 2pcs of V-groove bits, 5pcs of different spiral end mills. It is suitable for woodworking and metal carving.
- This kit is compatible with all FoxAlien CNC router machines and any other CNC spindle motors that use ER11 collet.
- These router bits are widely used to carve, drill, and cut on hardwood, plywood, acrylic, plastic fiber, resin, PCB, aluminum and other material. The larger size can improve the working efficiency.
- High quality tungsten steel strengthens the hardness so that the service life is extended and the bits are more durable and wear-resistant.

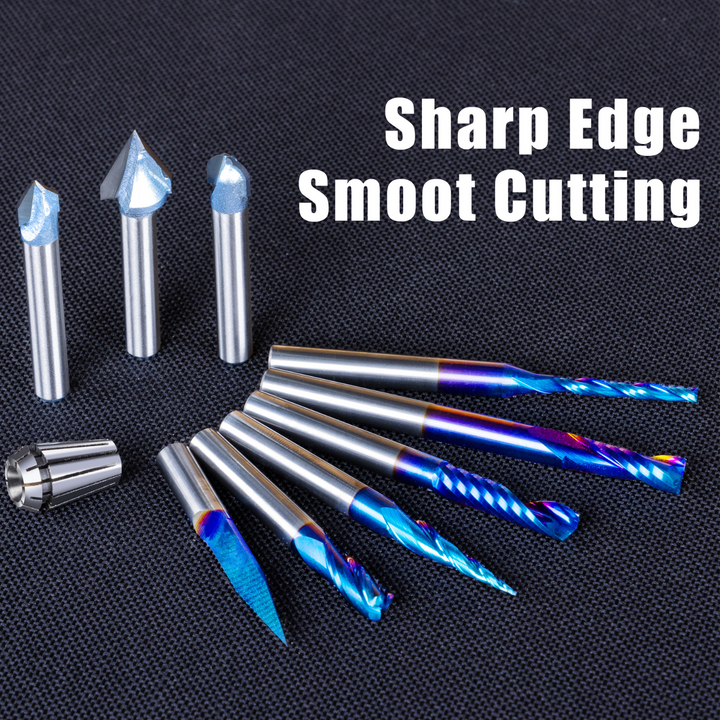

- Sharp cutting edge, no glitches on the surface. Ultrafine carbide material ensures its engraving and milling performance.
Production Specifications
1X 2-Flute Spiral End Mill
- Type: downcut
- Flute: 2 flutes
- Shank size: 1/4-inch shank (6.35mm)
- Cutting edge size: 1/4 inch (6.35mm)
- Edge length: 20mm
1X 2-Flute Spiral End Mill
- Type: downcut
- Flute: 2 flutes
- Shank size: 1/4-inch shank (6.35mm)
- Cutting edge size: 1/4 inch (6.35mm)
- Edge length: 25mm

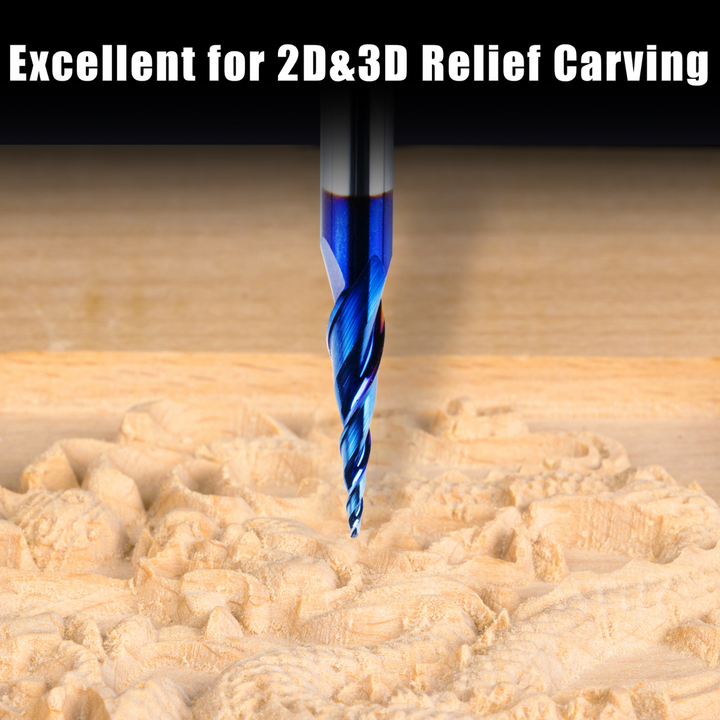

1X Tapered Ball Nose End Mill
- Flute: 2 flutes
- Cutting radius: 0.5mm
- Cutting diameter: 1.0mm
- Shank size: 1/4-inch shank (6.35mm)
- Edge Length: 25mm
1X Single-Flute End Mill
- Type: downcut
- Flute: single flutes
- Shank size: 1/4-inch shank (6.35mm)
- Cutting edge size: 1/4 inch (6.35mm)
- Edge length: 25mm
1X 3-Flute Spiral End Mill
- Type: downcut
- Flute: 3 flutes
- Shank size: 1/4-inch shank (6.35mm)
- Cutting edge size: 1/4 inch (6.35mm)
- Edge length: 15mm
1X 20° Engraving V-bit
- Type: V-bit
- Cutting edge: 20°
- Cutting edge size: 0.1mm
- Shank size: 1/4-inch shank (6.35mm)
- Edge length: 23mm

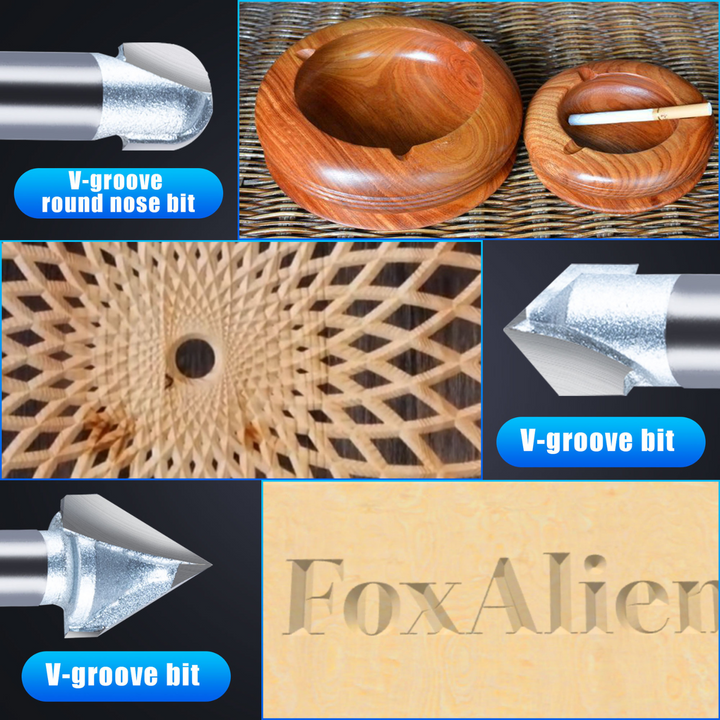

1X V-groove round nose bit
- Type: V-groove round nose
- Flute: 2 flutes
- Cutting diameter: 5/16 inch (7.96mm)
- Shank size: 1/4 inch (6.35mm)
- Edge length: 8mm
1X 90° V-groove bit
- Type: V-groove
- Flute: 2 flutes
- Cutting edge: 90°
- Cutting diameter: 5/16 inch (7.96mm)
- Shank size: 1/4 inch (6.35mm)
1X 60° V-groove bit
- Type: V-groove
- Flute: 2 flutes
- Cutting edge: 60°
- Cutting diameter: 1/2 inch (12.7mm)
- Shank size: 1/4 inch (6.35mm)
1X 1/4" ER11 Collet
- Type: ER11
- Inner diameter: 1/4 inch (6.35mm)
