FoxAlien

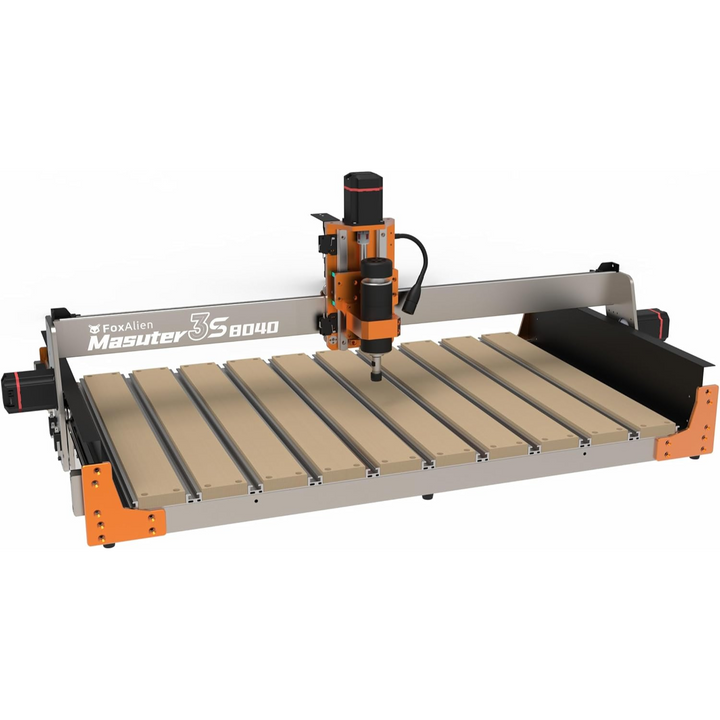

CNC Router Masuter 3S with 8040 Extension Bundle Kit

SKU: BD-M3S-8040 |

$1,359.99 $1,499.99 Save $-140.00
Free Shipping in U.S.
Fast Delivery
International Shipping Available
Lifetime Customer Support

  • Fast & Strong Closed-loop Motors: The Masuter 3S is equipped with NEMA23-76 closed-loop stepper motors. They have great performance in step-loss control. And the torque is 2.2 Nm. and its moving speed is up to 10000mm/min.
  • Rigid Structure & High Accuracy: The Masuter 3S uses 23*60mm extrusions that ensure the stability during carving. The Z-axis uses dual HG-15 linear rails and T12 lead screw, which effectively reduce wobble and enhance the engraving accuracy to 0.05mm.
  • 400W Powerful Spindle: It comes with a 400watt spindle, which is capable to engrave and cut soft metal such as aluminum. An extra spindle clamp (65mm) is included in the package for trimmer router upgrade.
  • Easy-maintenance Controller Box: the newly designed controller box is easy to use and maintain. There are several shortcut buttons for fast operation. And it is dust-proof and easy to clean. It supports offline controller.

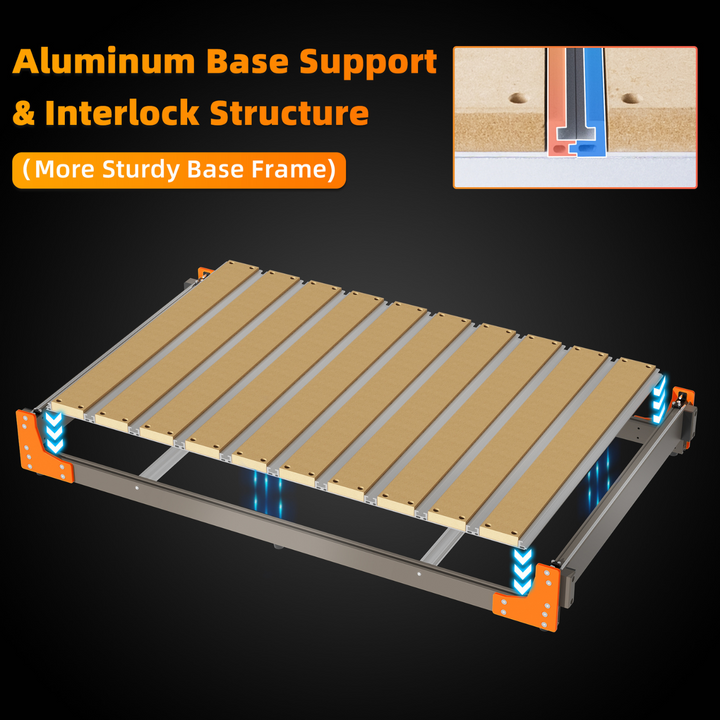

  • More Upgrade Details: Innovative steel wheels pulley system improves the durability. The machine runs more smoothly and quietly. Additional supports are added to the base frame to make the worktable more solid.

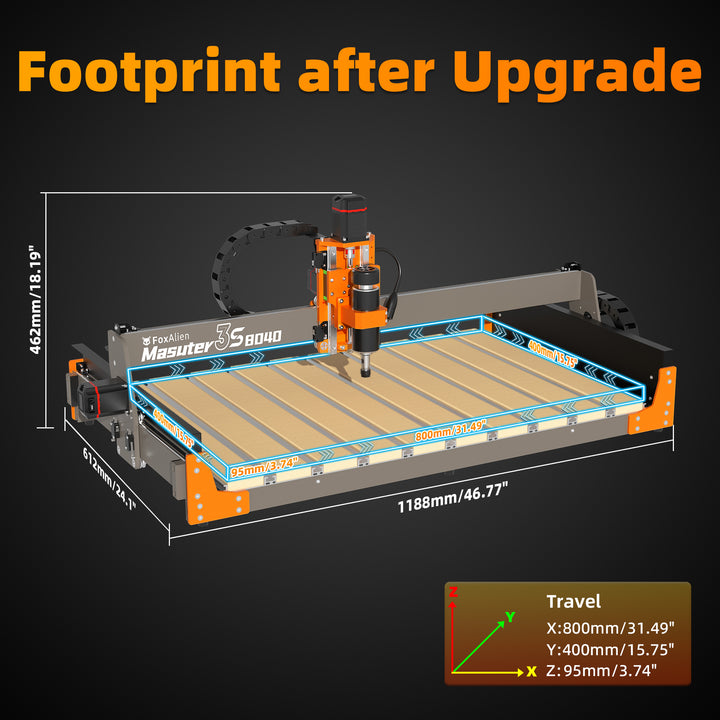

  • Large Engraving Area: The active work area is 15.75” x 15.75” x 3.74” (400 x 400 x 95mm). It also supports X-axis extension kit for large projects

*EU is out of stock for now. Due to the large demand in the EU market, EU order of the Masuter 3s is expected to be shipped by the end of October.

Description

The Masuter 3S is the first CNC Router comes with four Nema23 Closed Loop Motors at a price under $1000 in the market. It is the latest model in the FoxAlien CNC Router's family in 2024. Equipped with 400W spindle and four Nema23 Closed Loop Stepper Motors(max torque 2.2Nm) which make the machine powerful enough to achieve a nice finish on wood, acrylic, carbon fiber, and soft metal. The max moving speed of the Masuter 3S is 10000mm/min, this can reduce a lot of time when the machine needs to run a laser engraving project. If you are looking for a CNC for both wood carving and laser engraving jobs, the Mastuer 3S is the best choice.

Specification

  • Model Name: Masuter 3S
  • Working Area: 15.75“ x 15.75” x 3.74“ (400 x 400 x 95mm)
  • Frame & Structure: Metal Frame & MDF Spoilboard
  • XYZ Axis Stepper Motor: Nema23 76mm Closed Loop Stepper Motor
  • Max Speed: 10000mm/min
  • Spindle Power: 400W
  •  Extra Mount: 52mm & 65mm

Package List

  • 1x CNC Router Masuter 3S
  • 1x MDF Table
  • 1x Control box
  • 1x Set of engraving bits (10pcs/set)
  • 1x USB cable
  • 1x Power cord
  • 1x Box of screws and tools
  • 1x User manual

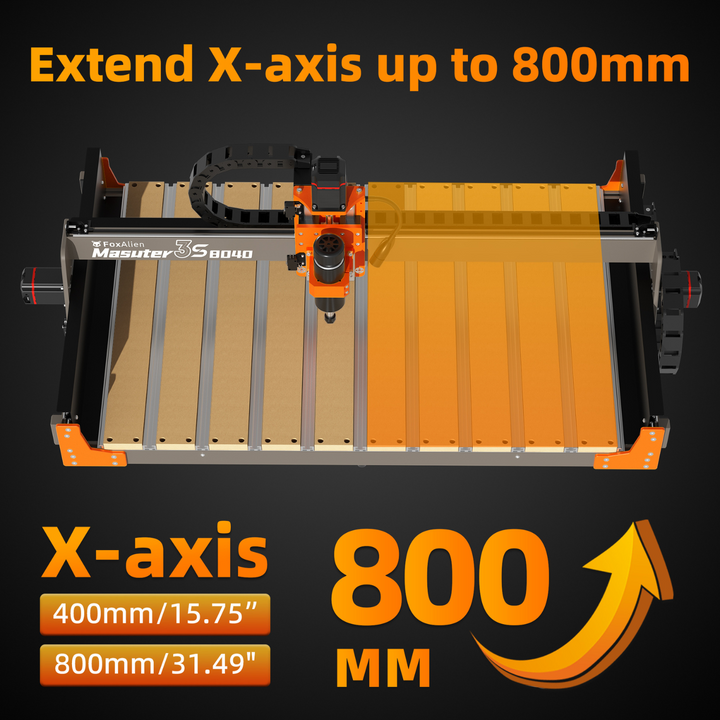

  • 1x X-Axis Extension 8040 for Masuter 3S
